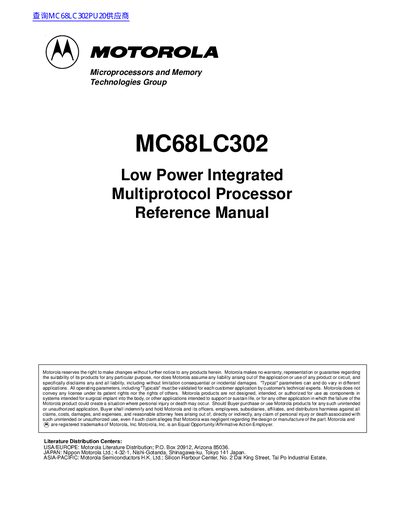

This manual provides detailed information about the MC68LC302 Low Power Integrated Multiprotocol Processor, including its features, instruction set, registers, interfaces, and applications.
The document serves as a technical guide for the MC68LC302 Low Power Integrated Multiprotocol Processor. It details how this specific model differs from the original MC68302, covering new features such as configuration control, clocking, low power modes, and internal memory mapping.
The manual is structured into seven main sections, providing comprehensive information on system integration blocks, communications processors, signal descriptions, electrical characteristics, mechanical data, and ordering information. It also includes a preface explaining the relationship between this reference manual and other required documentation like the User's Manual.
The MC68302 Integrated Multiprotocol Processor User's Manual is required, as this reference manual only describes the new features of the MC68LC302.
It describes the programming, capabilities, registers, and operation of the processor that differ from the original MC68302.
