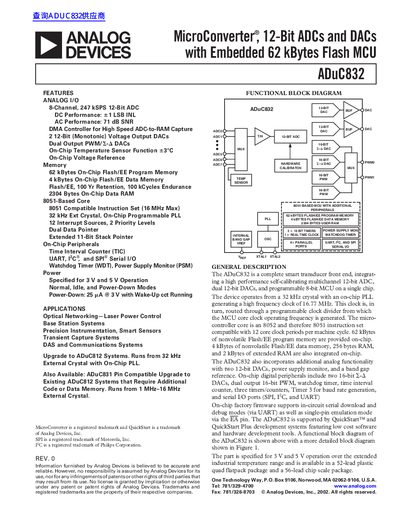

ADuC832 MicroConverter ® 12-Bit ADCs and DACs with Embedded 62 kBytes Flash MCU
The ADuC832 is a complete smart transducer front-end device that integrates a high-performance self-calibrating multichannel 12-bit ADC, dual 12-bit DACs, and a programmable 8-bit 8051-based MCU on a single chip. It operates from a 32 kHz crystal with an on-chip PLL generating a high-frequency clock of 16.77 MHz.
| Resolution | 12 Bits |
|---|---|
| Integral Nonlinearity | +1 LSB max |
| Signal-to-Noise Ratio | 71 dB typ |
| Program Memory | 62 kBytes |
| Data RAM | 2304 Bytes |
| Operating Voltage | 3 V and 5 V |
| Max Clock Frequency | 16 MHz |
| Flash Endurance | 100,000 Cycles |
The maximum clock frequency is 16 MHz.
The Flash/EE memory has a data retention of 100 years.
Yes, it includes an on-chip temperature sensor function.
