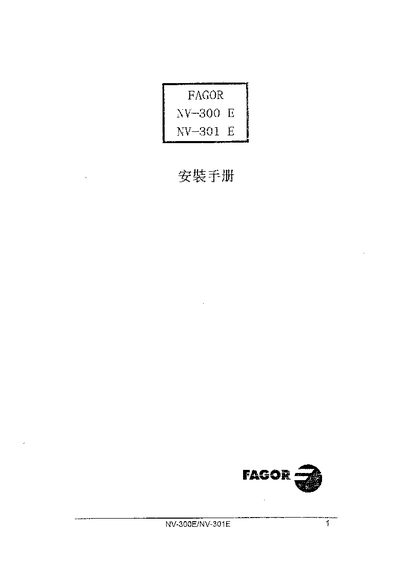

This guide provides safety instructions, recommended installation locations, and detailed wiring diagrams for the Fagor NV-300E/NV-301E DRO. It explains power‑supply requirements, grounding, and connection of input/output ports.
The document also describes parameter settings, error codes, and maintenance procedures, helping technicians correctly commission and service the device on machine tools. This manual is written in Chinese.
| Power frequency range | 45 Hz – 400 Hz |
|---|---|
| Front panel sealing | PS4 (DIN 40030) |
| Rear panel sealing | P54 (DIN 40050) |
