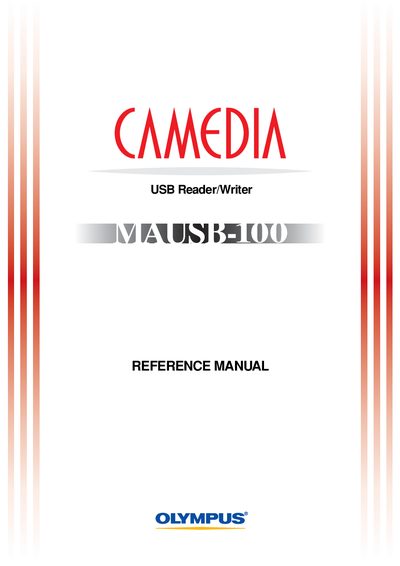

This manual describes the features and usage of the MAUSB-100 USB reader/writer.
The Olympus MAUSB-100 is a compact USB Reader/Writer designed exclusively for reading and writing data to xD-Picture Cards. It supports the high-speed USB 2.0 interface and the USB Mass Storage Class, allowing the card to be recognized as a Removable Disk by the computer without the need for a separate device driver on USB 2.0 systems. The device is powered via the USB connection and includes a write-protect switch to prevent accidental data deletion.
| Compatible Operating Systems | Windows 98/98 SE/Me/2000 Professional/XP; Mac OS 9.0 - 9.2.2/X |
|---|---|
| Interface | USB 2.0 / USB 1.1 |
| Supported Cards | xD-Picture Card 16MB to 512MB |
| Power Supply | USB Bus Power |
No, the MAUSB-100 supports the USB Mass Storage Class, so the card is recognized as a Removable Disk without installing a driver on computers that support USB 2.0.
No, it is not possible to connect two or more MAUSB-100s to a single PC at the same time.
No, the provided utility software is not compatible with Mac OS; users should format the card with their digital camera instead.
