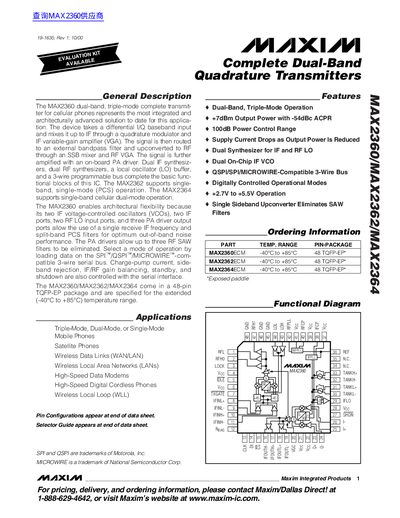

Maxim MAX2360/MAX2362/MAX2364 Complete Dual-Band Quadrature Transmitters Datasheet

The MAX2360 is a dual-band, triple-mode cellular phone transmitter that is the most integrated and architecturally advanced solution to date.

Brand: Maxim
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 24
File format: PDF
File size: 404 KB
Published: 08 June, 2012
Updated: 30 September, 2023
MD5 checksum: CBF4FBFBE2685B3F6AAD68EDC05E75D7
PDF: Maxim MAX2360/MAX2362/MAX2364 Complete Dual-Band Quadrature Transmitters Datasheet PDF

About this manual

The MAX2360, MAX2362, and MAX2364 are integrated transmitters designed for mobile phones and wireless applications. The MAX2360 supports dual-band, triple-mode operation, while the MAX2362 supports single-band, single-mode (PCS) operation, and the MAX2364 supports single-band cellular dual-mode operation. These devices take a differential I/Q baseband input and mix it up to IF through a quadrature modulator and IF variable-gain amplifier (VGA).

What's inside

General Description
Applications
Features
Ordering Information
Absolute Maximum Ratings
Electrical Characteristics
Typical Operating Characteristics

Specifications

Operating Supply Voltage	2.7V to 3.0V
Operating Temperature Range	-40°C to +85°C
Output Power	+7dBm
Power Control Range	100dB
Package	48-pin TQFP-EP

Frequently asked questions

What is the operating voltage range?

The device operates with a supply voltage between 2.7V and 3.0V.

What is the maximum output power?

The device provides +7dBm output power with -54dBc ACPR.
