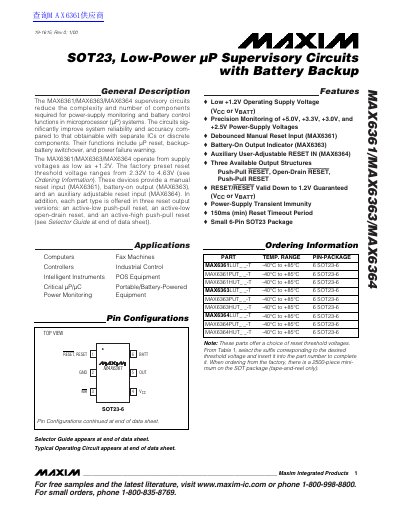

Maxim Integrated MAX6361/MAX6363/MAX6364 Supervisory Circuits Datasheet

The data sheet describes the features of the MAX6361/MAX6363/MAX6364 power supply monitoring and battery control chips from maxim-ic

Brand: Maxim
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 101 KB
Published: 08 June, 2012
Updated: 01 October, 2023
Models: MAX6363, MAX6364
MD5 checksum: A1B64001616D3A44F3B0EEFB14A376D7
PDF: Maxim Integrated MAX6361/MAX6363/MAX6364 Supervisory Circuits Datasheet PDF

About this manual

The MAX6361, MAX6363, and MAX6364 are supervisory circuits designed to reduce component complexity in microprocessor systems. They provide functions such as µP reset, backup-battery switchover, and power failure warning. These devices operate from supply voltages as low as +1.2V with a factory preset reset threshold ranging from 2.32V to 4.63V.

What's inside

General Description
Applications
Features
Ordering Information
Pin Configurations
Absolute Maximum Ratings
Electrical Characteristics
Typical Operating Characteristics
Detailed Description

Specifications

Operating Supply Voltage	+1.2V to +5.5V
Reset Threshold Range	2.32V to 4.63V
Package Type	6-Pin SOT23
Operating Temperature Range	-40°C to +85°C
Reset Timeout Period	150ms (min)

Frequently asked questions

What is the minimum operating supply voltage?

The devices operate from supply voltages as low as +1.2V.

Which models include a manual reset input?

Only the MAX6361 model provides a manual reset input (MR).

What is the function of the BATT ON output?

The BATT ON output goes high when the device is in battery backup mode.
