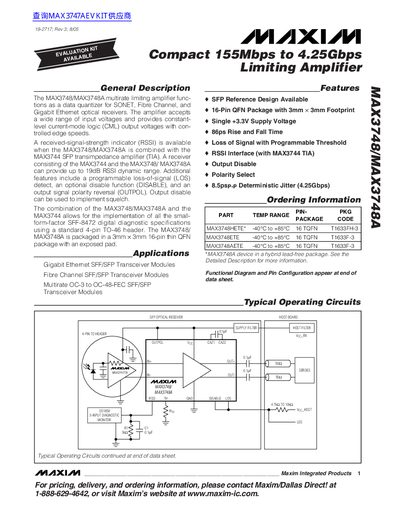

The MAX3748/MAX3748A multirate limiting amplifier functions as a data quantizer for SONET, Fibre Channel, and Gigabit Ethernet optical receivers. The amplifier accepts a wide range of input voltages and provides constant-level current-mode logic (CML) output voltages with controlled edge speeds. A received-signal-strength indicator (RSSI) is available when the MAX3748/MAX3748A is combined with the MAX3744 SFP transimpedance amplifier (TIA).
The MAX3748/MAX3748A functions as a data quantizer for high-speed optical receivers. It accepts a wide range of input voltages and provides constant-level current-mode logic (CML) output voltages with controlled edge speeds. When combined with the MAX3744 SFP transimpedance amplifier, it supports an RSSI interface.
| Data Rate Range | 155Mbps to 4.25Gbps |
|---|---|
| Supply Voltage | +3.3V |
| Rise and Fall Time | 86ps |
| Package Type | 16-Pin QFN |
| Operating Temperature Range | -40°C to +85°C |
The amplifier supports data rates ranging from 155Mbps to 4.25Gbps.
The device operates with a single +3.3V supply voltage.
The maximum differential input voltage is 2.5V.
