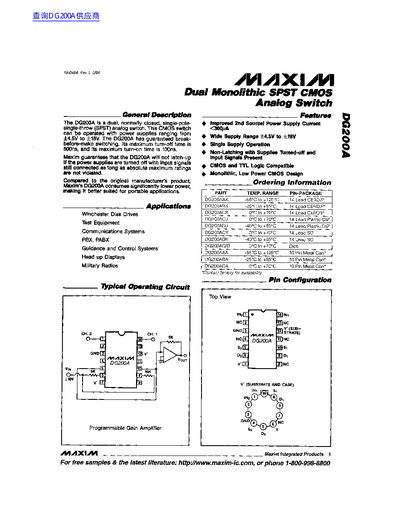

Maxim DG200A Dual Monolithic SPST CMOS Analog Switch Datasheet

About this manual

The DG200A is a dual, normally closed, single-pole-single-throw (SPST) analog switch manufactured by Maxim Integrated Products. It features guaranteed break-before-make switching and can be operated with power supplies ranging from +4.5V to +18V.

Key specifications include a maximum turn-off time of 500ns and a maximum turn-on time of 100ns. The device is designed for low-power portable applications, consuming less than 300uA of supply current when both channels are on or off.

What's inside

• General Description
• Applications
• Features
• Ordering Information
• Pin Configuration
• Absolute Maximum Ratings
• Electrical Characteristics

Specifications

Frequently asked questions

What is the switching type of the DG200A?

The device features guaranteed break-before-make switching.

Is the DG200A compatible with TTL logic?

Yes, it is CMOS and TTL Logic Compatible.
