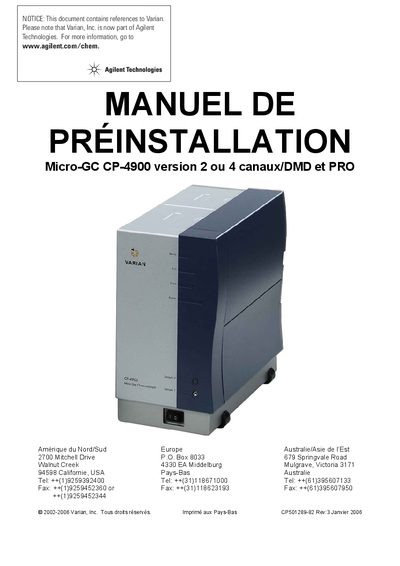

This document is a pre-installation manual for Varian's Micro-GC CP-4900 version 2 or 4 channel/DMD and PRO products. The manual includes safety operation guidelines and instructions.
This document serves as a preinstallation manual for the Agilent CP-4900 Micro-Gas Chromatograph. It outlines critical safety instructions and operational guidelines to ensure safe setup before the service engineer arrives. The guide details environmental conditions such as temperature ranges (0°C to 50°C) and humidity limits, along with specific spatial requirements for installation. This manual is written in French.
| Operating Temperature | +0°C to +50 °C |
|---|---|
| Relative Humidity | 0% to 95% RH (non condensable) |
| Power Supply Voltage | 90 to 260 Vac |
| Max Power Consumption | 130 W |
| Carrier Gas Purity | Minimum 99.999% |
| Sample Pressure Range | 0 to 100 kPa |
The system requires a Pentium processor greater than 1GHz, more than 512 MB of RAM for Windows 2000 or XP, and over 20 GB of hard disk space.
Compatible carrier gases include Helium (He), Hydrogen (H2), Argon (Ar), and Nitrogen (N2).
Carrier gases must have a minimum purity of 99.999%.
