This document describes a range of display devices, including AlGaAs red, high efficiency red (HER), green, and orange options. These devices feature a black surface and color tinted epoxy, and they are available in industry standard sizes with standard pinouts. They can be used for single and two digit displays. The segments are evenly lighted and have a viewing angle of ±50°. The displays have excellent appearance and are categorized for luminous intensity and color to ensure a uniform display. They are suitable for applications such as long digit string multiplexing.

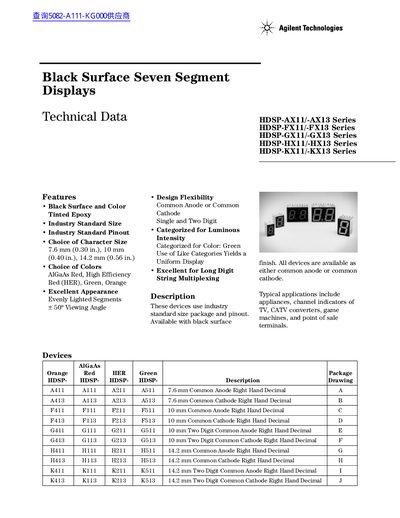

This document provides technical data for Agilent Technologies Black Surface Seven Segment Displays. The product line includes the HDSP-AX11/-AX13, HDSP-FX11/-FX13, HDSP-GX11/-GX13, HDSP-HX11/-HX13, and HDSP-KX11/-KX13 series. These devices feature black surface and color tinted epoxy, industry standard sizes ranging from 7.6 mm to 14.2 mm, and are available in AlGaAs Red, High Efficiency Red (HER), Green, and Orange colors. They support both Common Anode and Common Cathode configurations in single and two-digit formats.
| Character Size Options | 7.6 mm, 10 mm, 14.2 mm |
|---|---|
| Available Colors | AlGaAs Red, High Efficiency Red (HER), Green, Orange |
| Configuration Options | Common Anode or Common Cathode |
| Operating Temperature Range (HDSP-X11X) | -20 to +100 °C |
| Storage Temperature Range | -55 to +100 °C |
| Peak Wavelength (AlGaAs Red) | 645 nm |
| Peak Wavelength (High Efficiency Red) | 635 nm |
| Peak Wavelength (High Performance Green) | 566 nm |
The displays are available in 7.6 mm, 10 mm, and 14.2 mm sizes.
The operating temperature range is -20 to +100 °C.
