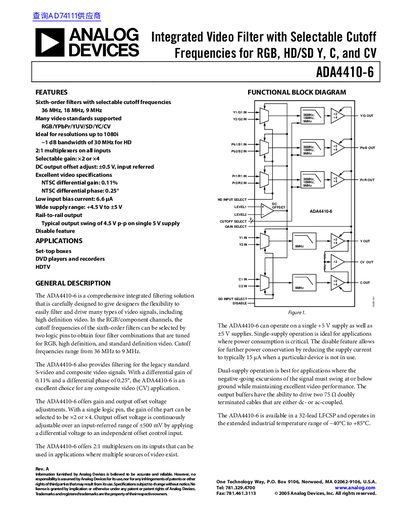

The ADA4410-6 is a comprehensive integrated filtering solution that is carefully designed for applications with resolutions up to 1080i and supports multiple video standards. It features selectable cutoff frequencies and gain, making it ideal for various applications such as set-top boxes, DVD players and recorders, and HDTV.
The ADA4410-6 is an integrated filtering solution designed to handle various video standards including RGB, high definition (HD), standard definition (SD), S-video, and composite video. It features sixth-order filters with selectable cutoff frequencies ranging from 36 MHz down to 9 MHz, making it suitable for resolutions up to 1080i.
The device offers flexible gain settings of x2 or x4 via a logic pin and includes an output offset voltage adjustment. With low input bias current (6.6 pA) and excellent video specifications such as 0.11% NTSC differential gain, it is ideal for applications in set-top boxes, DVD players, and HDTV systems.
| Filter Order | Sixth-order |
|---|---|
| Selectable Cutoff Frequencies | 36 MHz, 18 MHz, 9 MHz |
| -1 dB Bandwidth (36 MHz setting) | 30 MHz |
| Input Bias Current | 6.6 pA |
| Supply Voltage Range (Single) | +4.5 V to +5 V |
| Output Swing (Typical, Single 5V) | 4.5 V p-p |
| NTSC Differential Gain | 0.11% |
| NTSC Differential Phase | 0.25° |
It supports RGB/YPbPr/YUV, SD, YC (S-video), and CV (composite video).
The device is ideal for resolutions up to 1080i.
Yes, the gain can be selected to be x2 or x4 using a single logic pin.
