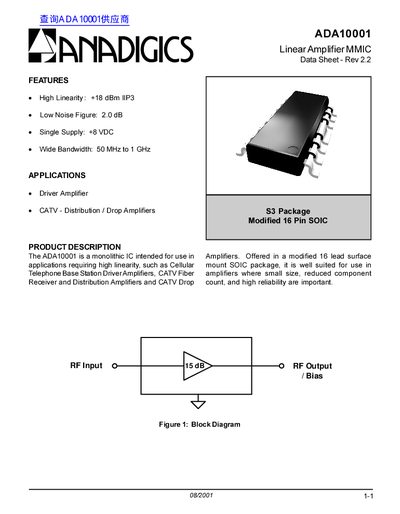

This document is a datasheet for ADA10001, a RF Power Amplifier. It provides the product's features and characteristics.
The ADA10001 is a monolithic IC designed for applications requiring high linearity, such as cellular telephone base station driver amplifiers and CATV fiber receiver and distribution amplifiers. It is offered in a modified 16 lead surface mount SOIC package, making it well suited for use in amplifiers where small size, reduced component count, and high reliability are important.
Key features include high linearity with an IIP3 of +18 dBm, a low noise figure of 2.0 dB, and a wide bandwidth from 50 MHz to 1 GHz. The device operates on a single supply of +8 VDC and is available in a modified 16 pin SOIC package.
| IIP3 | +18 dBm |
|---|---|
| Noise Figure | 2.0 dB |
| Supply Voltage | +8 VDC |
| Bandwidth | 50 MHz to 1 GHz |
| Gain | 14 to 15 dB |
| Operating Frequency | 50 to 1000 MHz |
| Package | Modified 16 Pin SOIC |
It is intended for use in Cellular Telephone Base Station Driver Amplifiers, CATV Fiber Receiver and Distribution Amplifiers, and CATV Drop Amplifiers.
The device operates on a single supply voltage of +8 VDC.
The RF input and output frequency range is from 50 MHz to 1000 MHz.
