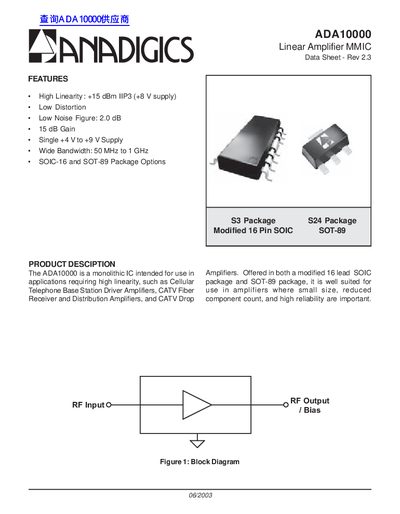

ADA10000 is a monolithic IC intended for use in applications requiring high linearity, such as Cellular Telephone Base Station Driver Amplifiers, CATV Fiber Receiver and Distribution Amplifiers, and CATV Drop Amplifiers. It offers high linearity, low distortion, low noise figure, 15 dB gain, and wide bandwidth.
The ADA10000 is a monolithic integrated circuit (IC) designed as a Linear Amplifier MMIC. It is intended for applications requiring high linearity, such as cellular telephone base station driver amplifiers, CATV fiber receivers, and distribution amplifiers.
Available in both modified 16-lead SOIC and SOT-89 packages, the device offers a wide bandwidth from 50 MHz to 1 GHz with a typical gain of 15 dB. It operates on a single supply voltage ranging from +4 V to +9 V.
| Frequency Range | 50 MHz to 1 GHz |
|---|---|
| Supply Voltage | +4 V to +9 VDC |
| Gain | 15 dB |
| Noise Figure | 2.0 dB |
| IIP3 (Input Intercept Point) | +15 dBm |
The device is offered in both a modified 16 lead SOIC package and SOT-89 package.
The case temperature can operate from -40 °C to +85 °C.
