This document introduces a product with RF input of 15dB and RF output of 12dB, which has high gain and low noise characteristics.

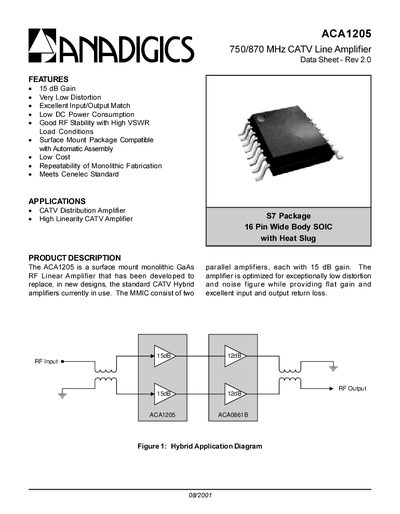

The ANADIGICS ACA1205 is a surface-mount monolithic Gallium Arsenide (GaAs) RF Linear Amplifier designed to replace standard CATV hybrid amplifiers in new designs. It features two parallel amplifiers, each providing 15 dB of gain, optimized for low distortion and noise figure.
| Gain | 15 dB (Typical) |
|---|---|
| Frequency Range | 40 - 870 MHz |
| Supply Voltage | +12 VDC (Typical) |
| Operating Temperature | -40 to +110 °C |
| Package Type | 16 Pin Wide Body SOIC with Heat Slug |
| Noise Figure | 25 dB (Typical) |
The device operates over a frequency range from 40 MHz to 870 MHz.
Yes, it is available in a surface mount package compatible with automatic assembly.
