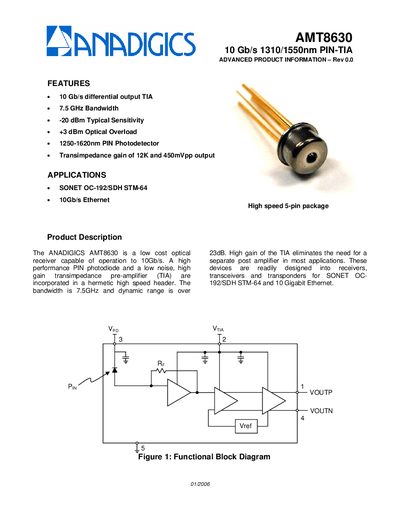

This is the detailed information of ANADIGICS AMT8630 10 Gb/s 1310/1550nm PIN-TIA product, including product features, application scenarios, electrical characteristics, etc.
The AMT8630 is a high‑performance 10 Gb/s optical receiver that integrates a PIN photodiode and a low‑noise, high‑gain transimpedance amplifier in a hermetic high‑speed 5‑pin package. It is suited for SONET OC‑192/SDH STM‑64 and 10 Gb/s Ethernet applications.
Key specifications include a 7.5 GHz bandwidth, typical sensitivity of –20 dBm, overload level of +3 dBm, and a transimpedance gain of 12 kΩ. The device operates from a 3.3 V supply, consumes about 105 mW, and is available in ball‑lens or pigtail package variants.
| Bandwidth | 7.5 GHz |
|---|---|
| Typical Sensitivity | -20 dBm |
| Optical Overload | +3 dBm |
| Wavelength Range | 1250‑1620 nm |
The typical sensitivity is –20 dBm.
It operates over a wavelength range of 1250 nm to 1620 nm.
It is offered in a high‑speed 5‑pin package with either a ball lens (AMT8630‑T46L) or a pigtail (AMT8630‑H1).
