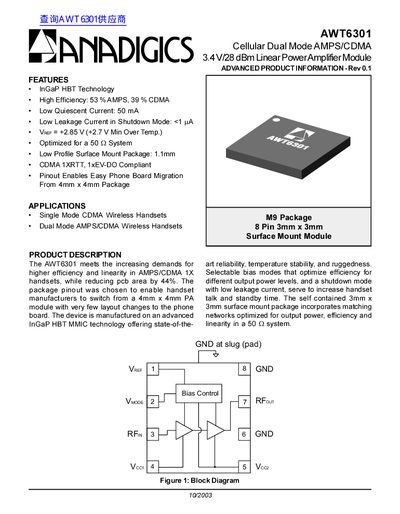

The AWT6301 is an 8-pin surface mount module designed for single or dual-mode wireless handsets. It utilizes InGaP HBT MMIC technology to provide high efficiency (up to 53% for AMPS and 39% for CDMA) while reducing PCB area by 44%. The device features selectable bias modes to optimize performance for different output power levels.
| Operating Frequency | 824 - 849 MHz |
|---|---|
| AMPS Output Power | +28 dBm typical |
| CDMA Efficiency | 39 % |
| Quiescent Current (AMPS) | 100 mA typical |
| Package Type | 8 Pin 3mm x 3mm Surface Mount Module |
The typical supply voltage (Vcc) is +3.4 V.
Shutdown is achieved by applying a logic low level to both the Vrer and Vuone voltages.
The leakage current is less than 1 pA.
