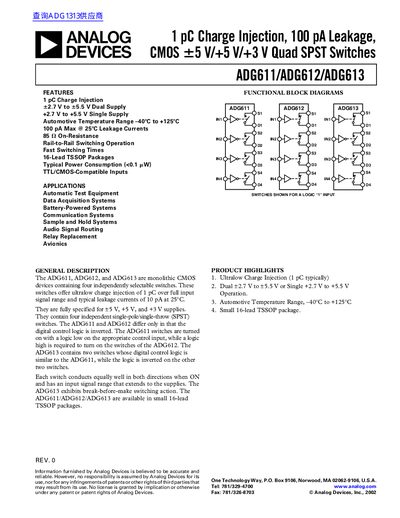

The ADG611, ADG612, and ADG613 are monolithic CMOS devices containing four independently selectable switches. These switches offer ultralow charge injection and leakage for ideal automotive and industrial applications.
The ADG611, ADG612, and ADG613 are monolithic CMOS devices containing four independently selectable single-pole/single-throw (SPST) switches. These switches offer ultralow charge injection of 1 pC over the full input signal range and typical leakage currents of 10 pA at 25 °C. They are fully specified for ±5 V, +5 V, and +3 V supplies.
| Charge Injection | 1 pC typ |
|---|---|
| Leakage Currents | 100 pA max |
| On-Resistance (R ON) | 85 Ω typ |
| Off Isolation | -65 dB typ |
| -3 dB Bandwidth | 680 MHz typ |
| Operating Temperature Range | -40 °C to +125 °C |
| Package | 16-Lead TSSOP |
The typical charge injection is 1 pC over the full input signal range.
The typical leakage currents are 10 pA at 25 °C.
They are fully specified for ±5 V, +5 V, and +3 V supplies.
