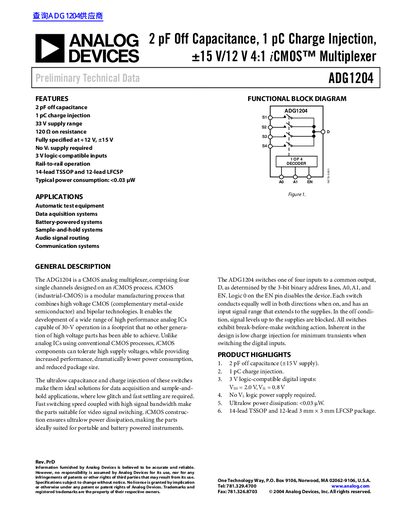

The ADG1204 is a 4:1 CMOS multiplexer fabricated in the iCMOS process. It features a 2 pF switch offset capacitance and 1 pC switch charge injection, a supply voltage range of 33 V, fully specified at +12 V and ±15 V, no VL supply required, 3 V logic-compatible inputs, a 120 ohm on resistance, and rail-to-rail operation.
The ADG1204 is a CMOS analog multiplexer comprising four single channels designed on an iCMOS process. This industrial-CMOS technology combines high voltage CMOS and bipolar technologies to enable high performance analog ICs capable of 30-V operation in a small footprint. The device switches one of four inputs to a common output based on 3-bit binary address lines and is ideal for data acquisition and sample-and-hold applications due to its ultralow capacitance and charge injection.
| Off Capacitance | 2 pF typical |
|---|---|
| Charge Injection | 1 pC typical |
| Supply Range | 33 V |
| Logic Compatible Inputs | 3 V |
| Bandwidth | 700 MHz typical |
| Power Consumption | <0.03 pW typical |
The typical off capacitance is 2 pF.
The typical charge injection is 1 pC.
No, the device does not require a Vcc supply.
