The ADN2849 is a low power 10.7Gbps driver for electro-absorption modulators. It is suitable for applications such as SONET OC-192 optical transmitters, SDH STM-64 optical transmitters, and 10Gb Ethernet.

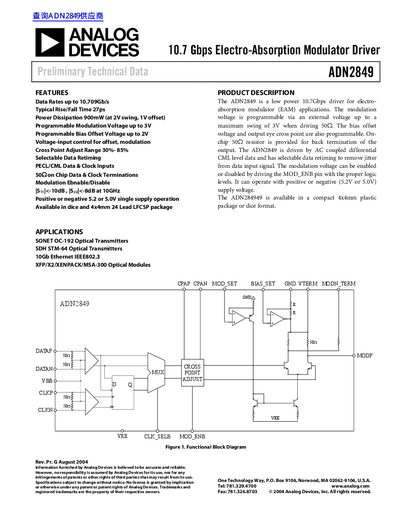

The ADN2849 is a low power driver designed for electro-absorption modulator (EAM) applications, supporting data rates up to 10.709 Gb/s. It features programmable modulation voltage up to a 3V maximum swing and programmable bias offset voltage up to 2V. The device includes on-chip 50Ω termination resistors for data and clock inputs and supports selectable data retiming to remove jitter from the data input signal.
| Data Rate | 10.709 Gb/s |
|---|---|
| Typical Rise Time | 27 ps |
| Power Dissipation | 900 mW |
| Programmable Modulation Voltage | up to 3V |
| Supply Voltage | 5.2V or 5.0V |
| Package Type | 4x4mm 24 Lead LFCSP |
| Bias Offset Voltage Range | -0.25 V to -2.0 V |
| Modulation Voltage Swing Range | 0.6 V to 3.0 V |
The ADN2849 is suitable for SONET OC-192 Optical Transmitters, SDH STM-64 Optical Transmitters, 10Gb Ethernet IEEE802.3, and various optical modules like XFP/X2/XENPACK/MSA-300.
Yes, the ADN2849SURF model is available as a bare die.
The ADN2849 supports data rates up to 10.709 Gb/s.
