ADN8830 is a thermoelectric cooler controller with features of high efficiency, small size, low noise, etc. It is suitable for applications such as thermoelectric cooler temperature control, resistive heating element control, temperature stabilization, etc.

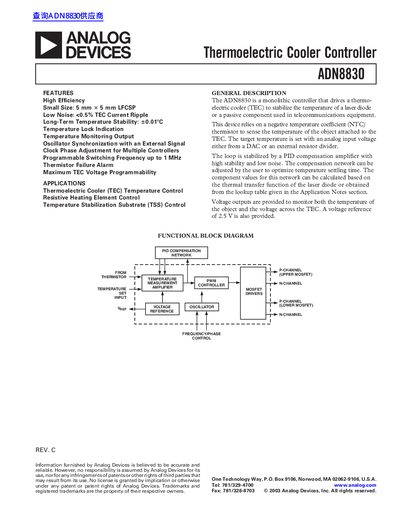

The ADN8830 is a monolithic controller designed to drive a thermoelectric cooler (TEC) for temperature stabilization of laser diodes or passive components used in telecommunications equipment. It utilizes a negative temperature coefficient (NTC) thermistor for sensing and allows the target temperature to be set via an analog input voltage from a DAC or external resistor divider.
The device features a PID compensation amplifier with high stability and low noise, allowing users to adjust the network to optimize settling time. Key capabilities include programmable switching frequencies up to 1 MHz, oscillator synchronization with external signals, and various monitoring outputs for temperature and TEC voltage.
| Output Voltage Ripple | <0.5% |
|---|---|
| Maximum Switching Frequency | 1 MHz |
| Power Supply Voltage Range | 3.0 V to 5.5 V |
| Reference Voltage (VREF) | 2.5 V |
| Operating Temperature Range | -40°C to +85°C |
The device drives a thermoelectric cooler (TEC) to stabilize the temperature of a laser diode or a passive component used in telecommunications equipment.
The target temperature is set with an analog input voltage either from a DAC or an external resistor divider.
The device supports a programmable switching frequency up to 1 MHz.
