PSD-XXXXD series is a 1KV isolated 1W unregulated dual output SMD, with input voltage range of 5 and 12 VDC and output voltages of (+/) 5, 9, 12 and 15 VDC. Other specifications please inquire.

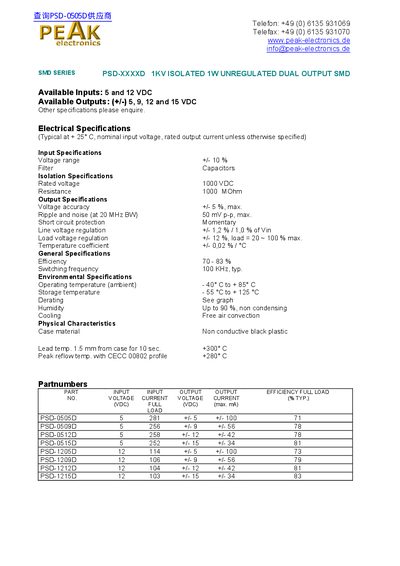

This document describes the PEAK PSD-XXXXD series, which are 1KV isolated, 1W unregulated dual output SMD power supplies. The series is available with input voltages of 5V and 12V DC, and output voltage options of +/- 5V, +/- 9V, +/- 12V, and +/- 15V DC.
| Rated Isolation Voltage | 1000 VDC |
|---|---|
| Isolation Resistance | 1000 MOhm |
| Voltage Accuracy | +/- 5 % |
| Ripple and Noise | 50 mV p-p |
The available input voltages are 5 VDC and 12 VDC.
The series offers output options of (+/-) 5, 9, 12 and 15 VDC.
Yes, it can operate in humidity up to 90% non-condensing.
