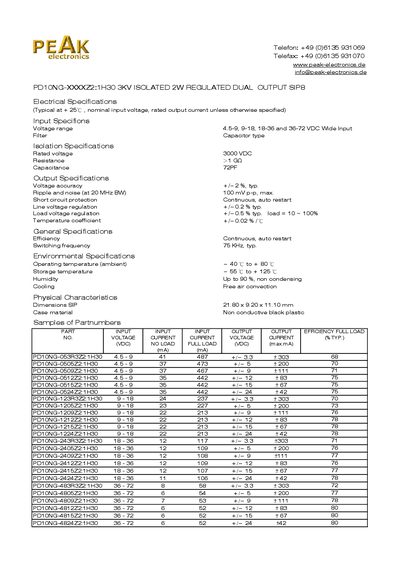

This document describes the electrical specifications of PD10NG-XXXXZ2:1H30 3KV isolated 2W regulated dual output SIP8, including input specifications, isolation specifications, output specifications, general specifications, environmental specifications, and physical characteristics.
The PEAK PD10NG-XXXXZ2:1H30 is a 2 W isolated DC‑DC converter with a 3 kV isolation rating and dual regulated outputs in a SIP‑8 package. It supports a wide input voltage range (4.5‑9, 9‑18, 18‑36 and 36‑72 VDC) and provides typical output voltage accuracy of ±2 %.
The device includes a control pin (Pin 3) for ON/OFF operation and a secondary‑side pin (Pin 5) that must remain unconnected externally. Recommended external output capacitors are 10 µF low‑ESR for each output and a 100 µF 25 V low‑ESR bulk capacitor. The converter operates at a typical switching frequency of 75 kHz and offers short‑circuit protection and line/load regulation. This manual is written in German.
| Input voltage range | 4.5‑9, 9‑18, 18‑36 and 36‑72 VDC |
|---|---|
| Isolation voltage rating | 3000 VDC |
| Output voltage accuracy | ±2 % (typ.) |
| Switching frequency | 75 kHz (typ.) |
| Package dimensions | 21.80 × 9.20 × 11.10 mm |
| Operating temperature range | -40 °C to +80 °C |
The converter is rated for 3000 VDC isolation.
Use 10 µF low‑ESR capacitors for each output and a 100 µF 25 V low‑ESR bulk capacitor.
The device operates at a typical switching frequency of 75 kHz.
