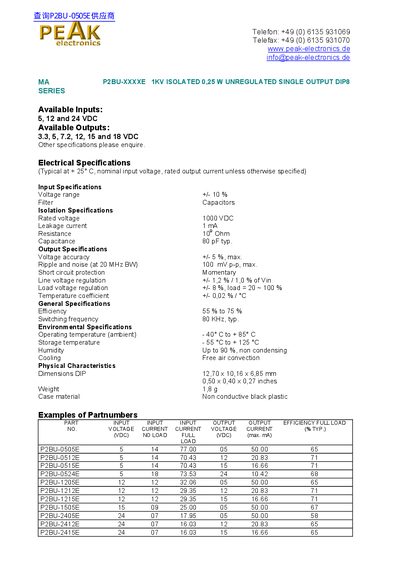

P2BU-XXXXE 1KV ISOLATED 0,25 W UNREGULATED SINGLE OUTPUT DIP8 is a switch power supply from PEAK-ELECTRONICS, which can provide 5, 12 and 24 VDC input and 3.3, 5, 7.2, 12, 15 and 18 VDC output.
This document describes the MA P2BU-XXXXE Series, which consists of 1KV isolated, 0.25W unregulated single output DC/DC converters available in an 8-pin DIP package. The series supports input voltages of 5.1V, 12V, and 24V DC, with selectable output voltages ranging from 3.3V to 18V DC.
| Rated Isolation Voltage | 1000 VDC |
|---|---|
| Leakage Current | 1mA |
| Capacitance | 80 pF typ. |
| Voltage Accuracy | +/-5 % max. |
| Ripple and Noise | 100 mV p-p, max. |
| Short Circuit Protection | Momentary |
| Line Voltage Regulation | +/- 1.2 % (4-10% of Vin) |
| Load Voltage Regulation | +/-8 % |
| Temperature Coefficient | +/- 0.02 % /°C |
| Efficiency Range | 55 % to 75 % |
| Switching Frequency | 80 KHz typ. |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55 °C to + 125 °C |
| Dimensions (DIP) | 12.70 x 10.16 x 6.85 mm |
The available inputs are 5.1V, 12V, and 24V DC.
Outputs include 3.3V, 5V, 7.2V, 12V, 15V, and 18V DC.
The rated isolation voltage is 1000 VDC.
