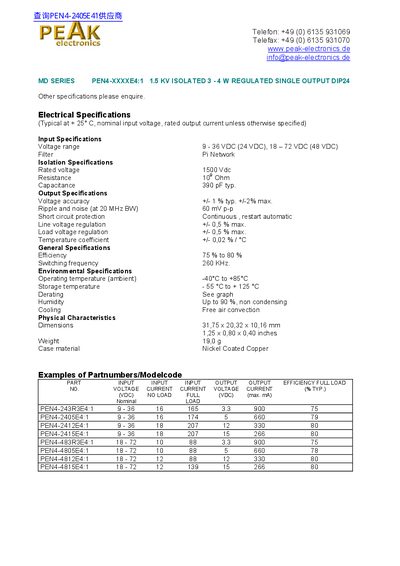

MD SERIES PEN4-XXXXE4:1 1.5 KV ISOLATED 3 - 4 W REGULATED SINGLE OUTPUT DIP24 is a switch regulator produced by Peak Electronics company. It has 1.5 kV insulation, 3-4 W output power, single output, DIP24 packaging.
This document provides a technical overview of the PEAK electronics MD Series, specifically the PEN4-XXXXE4:1 model. It details the device as a 1.5 kV isolated regulated single-output power supply with an input voltage range of 9-36 VDC or 18-72 VDC and output powers between 3 to 4 Watts.
| Rated Isolation Voltage | 1500 Vde |
|---|---|
| Isolation Capacitance | 390 pF typ. |
| Ripple and Noise | 60 mV p-p |
| Short Circuit Protection | Continuous, restart automatic |
| Efficiency Range | 75 % to 80 % |
| Switching Frequency | 260 KHz. |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | - 55 °C to + 125 °C |
| Cooling Method | Free air convection |
| Dimensions (mm) | 31,75 x 20,32 x 10,16 mm |
The maximum output power depends on the model and ranges between 3 and 4 Watts.
The available input voltages are 9-36 VDC (24 VDC) and 18—72 VDC (48 VDC).
