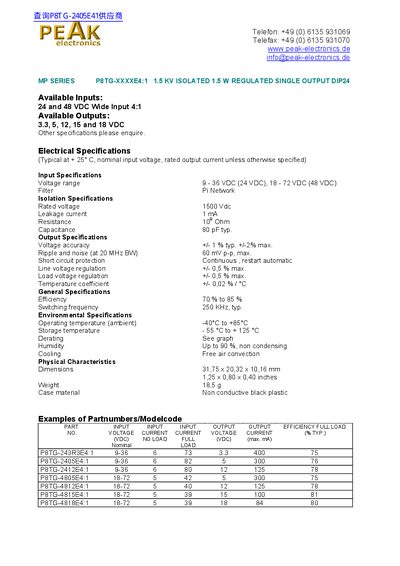

This product is P8TG-XXXXE4:1 1.5KV ISOLATED 1.5W REGULATED SINGLE OUTPUT DIP24, which supports 24 and 48V wide input, 1.5W output, and the output voltage can be selected from 3.3, 5, 12, 15, and 18V.
The MP SERIES P8TG‑XXXXE4:1 module provides isolated power conversion for industrial and instrumentation applications. It accepts wide input ranges (24 V or 48 V) and offers selectable output voltages of 3.3 V, 5 V, 12 V, 15 V and 18 V.
Key specifications include a 1500 V isolation rating, 70‑85 % efficiency, 250 kHz switching frequency, operating temperature from –40 °C to +85 °C, and a compact DIP24 package measuring 31.75 × 20.32 × 10.16 mm and weighing 185 g.
| Input voltage range | 9‑36 VDC (24 V), 18‑72 VDC (48 V) |
|---|---|
| Available output voltages | 3.3, 5, 12, 15, 18 VDC |
| Isolation rating | 1500 Vdc |
| Leakage current | 1 mA |
| Efficiency | 70 % to 85 % |
| Switching frequency | 250 kHz (typ.) |
| Operating temperature | -40 °C to +85 °C |
| Dimensions | 31.75 × 20.32 × 10.16 mm |
| Weight | 185 g |
The module accepts 9‑36 VDC when powered from a 24 V source and 18‑72 VDC when powered from a 48 V source.
The isolation rating is 1500 Vdc.
Available output voltages are 3.3 V, 5 V, 12 V, 15 V and 18 VDC.
