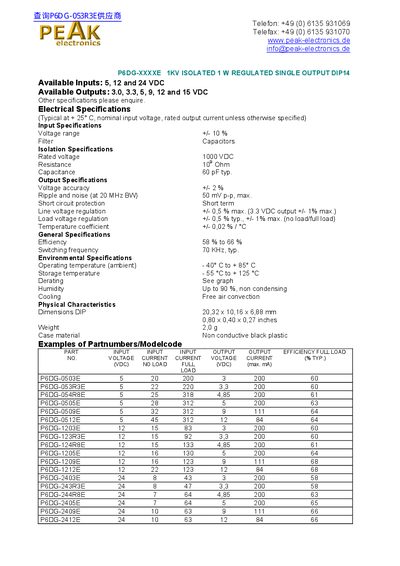

This document describes the electrical specifications, output specifications, and environmental specifications of the P6DG-XXXXE 1KV ISOLATED 1 W REGULATED SINGLE OUTPUT DIP14 product.
The P6DG-XXXXE series from PEAK is a 1 kV isolated, 1 W regulated DC‑DC converter offered in a DIP14 package. It supports a range of input voltages (5 V, 12 V, 24 V) and provides selectable output voltages from 3.0 V up to 15 V.
Key specifications include up to 66 % efficiency, a typical switching frequency of 70 kHz, and an isolation rating of 1000 VDC. The device operates from –40 °C to +85 °C, with a compact size of 20.32 × 10.16 × 6.88 mm and a weight of 2 g.
| Input voltage range | 5 V, 12 V, 24 V |
|---|---|
| Isolation rated voltage | 1000 VDC |
| Output voltage accuracy | +/- 1.2 % |
| Efficiency | 58 % to 66 % |
| Switching frequency | 70 kHz (typ.) |
| Operating temperature range | -40 °C to +85 °C |
| Package dimensions | 20.32 × 10.16 × 6.88 mm |
The isolation rating is 1000 VDC.
The device provides an efficiency between 58 % and 66 %.
It operates from –40 °C up to +85 °C.
