Pulse Electronics PG0040/41 series SMD power inductors, small footprint and low profile (6.7 mm x 4.5 mm x 2.0 mm MAX), PG0040 - low inductance/high saturation current for power applications, PG0041 - high inductance for EL backlight applications, reliable, cost effective self-leaded design

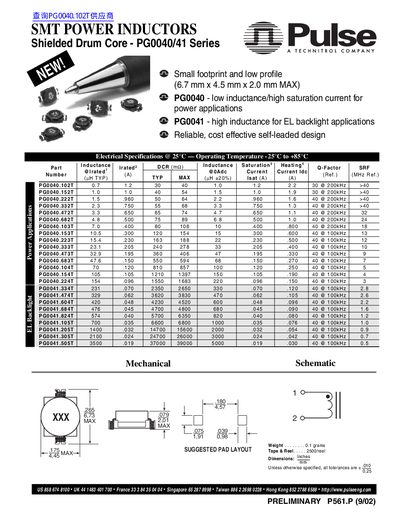

This document provides technical data for the Pulse PG0040/41 Series of Shielded Drum Core Surface Mount Technology (SMT) Power Inductors. The PG0040 series is designed for low inductance/high saturation current power applications, while the PG0041 series targets high inductance needs for EL backlight applications.
| Dimensions (Max) | 6.7 mm x 4.5 mm x 2.0 mm |
|---|---|
| Weight | 0.1 grams |
| Packaging Quantity | 2500/reel |
The maximum dimensions are 6.7 mm x 4.5 mm x 2.0 mm.
The weight of each inductor is 0.1 grams.
Each tape and reel contains 2500 inductors.
