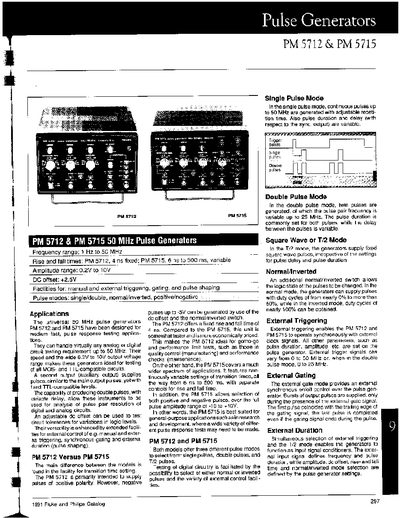

The Fluke PM5712 and PM5715 are pulse generators offering a frequency range from 1 Hz to 50 MHz, adjustable rise/fall times, and selectable pulse modes such as single, double and T/2. They provide manual and external triggering, gating, and pulse shaping for testing analog and digital circuits.
The manual includes detailed technical specifications, external input and output characteristics, power and environmental requirements, mechanical dimensions, ordering information and warranty details. It also describes how to use external trigger, gate and duration modes for synchronised pulse generation.
| Frequency range | 1 Hz to 50 MHz |
|---|---|
| Rise and fall time (PM5712) | 4 ns fixed |
| Rise and fall time (PM5715) | 6 ns to 500 µs variable |
| Amplitude range | 0.2 V to 10 V |
| DC offset | ±2.5 V (PM5712) / –2.5 V to +2.5 V (PM5715) |
| Pulse delay | 10 ns to 100 ms |
| Pulse duration | 10 ns to 100 ms |
| Jitter | <0.1 % of setting + 50 ps |
| Power consumption | 70 VA |
| Operating temperature | 6 °C to 40 °C |
| Size | 210 mm W × 130 mm H × 275 mm L |
| Weight | 4 kg (8.8 lb) |
Both models operate from 1 Hz up to 50 MHz.
The output amplitude can be set between 0.2 V and 10 V, with polarity options allowing –5 V to +10 V on the PM5715.
External trigger signals can range from DC up to 50 MHz, or 0 to 25 MHz in double‑pulse mode.
