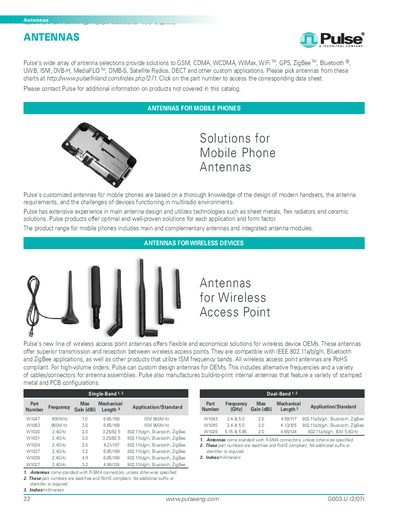

This document lists the information of wireless access point antennas produced by Pulse company, including frequency, gain, length, etc.
Pulse offers a broad portfolio of antennas for mobile phones, wireless devices, and automotive applications. The catalog includes main and complementary antennas, integrated modules, and surface‑mount solutions using sheet‑metal, flex‑radiator, ceramic, and helical technologies. Part numbers link to detailed data sheets on the Pulse website.
The Larsen line, part of Pulse, supplies automotive antennas ranging from 27 MHz to 5.9 GHz, as well as NMO mounting kits and portable/terminal antennas for wireless access points. These products are RoHS compliant, feature various connector options, and support multiple frequency bands for GSM, Wi‑Fi, Bluetooth, ZigBee, GPS, and more.
| Frequency (example part W047) | 900 MHz |
|---|---|
| Gain (example part W047) | 1.0 dBi |
| Connector type (standard) | A‑SMA |
| RoHS compliance | Yes |
| Operating temperature range | -40 °C to +85 °C |
Pulse provides main and complementary antennas as well as integrated antenna modules for mobile phones, using sheet‑metal, flex‑radiator, and ceramic technologies.
Yes, all wireless access point antennas listed in the catalog are RoHS compliant.
Click on the part number on Pulse's website (http://www.pulsefiniand.com) to access the corresponding data sheet.
