This document is the PC500.B reference operating values design control values table of Pulse, mainly including the rated inductance, current, energy, storage, resistance and other information of the product

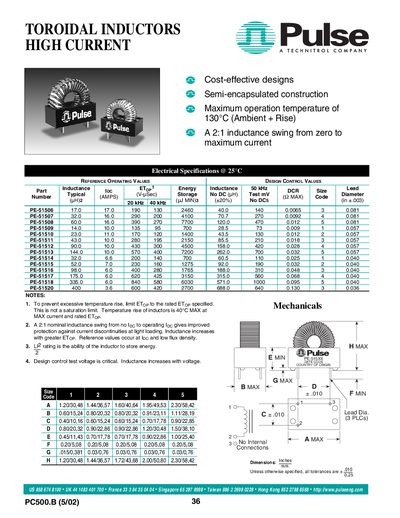

This document provides a technical overview of the Pulse Toroidal Inductors series designed for high-current applications. Key features include cost-effective designs with semi-encapsulated construction and a maximum operating temperature of 130°C (Ambient + Rise). The inductors offer a 2:1 inductance swing from zero to maximum current, providing improved protection against current discontinuities at light loading.
The document details specific electrical specifications for various models, including reference and design control values for inductance, energy storage, test voltage, and lead diameter. It also includes mechanical dimensions for different sizes (A through H) with tolerances specified.
| Maximum operation temperature | 130°C (Ambient + Rise) |
|---|---|
| Inductance swing ratio | 2:1 from zero to maximum current |
| Construction type | Semi-encapsulated |
The maximum operation temperature is 130°C, which includes both ambient and rise temperatures.
There is a 2:1 swing in inductance when going from zero current to maximum current.
The temperature rise of the inductors must not exceed 40°C under these conditions.
