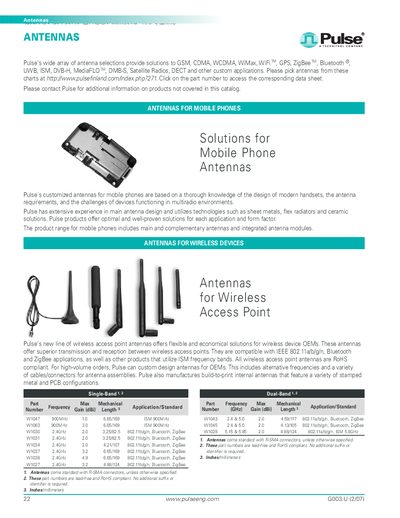

This document introduces Pulse's new line of wireless access point antennas, which offer flexible and economical solutions for wireless device OEMs. These antennas provide superior transmission and reception between wireless access points and are compatible with IEEE 802.11a/b/g/n, Bluetooth, and ZigBee applications, as well as other products that utilize ISM frequency bands. All wireless access point antennas are RoHS compliant. For high-volume orders, Pulse can custom design antennas for OEMs, including alternative frequencies and a variety of cables/connectors for antenna assemblies. Pulse also manufactures build-to-print internal antennas with a variety of stamped metal and PCB configurations. Pulse's wide array of antenna selections provides solutions for GSM, CDMA, WCDMA, WiMax, WiFi TM, GPS, ZigBee TM, Bluetooth ®, UWB, ISM, DVB-H, MediaFLO TM, DMB-S, Satellite Radios, DECT, and other custom applications. Please pick antennas from the charts at http://www.pulsefinland.com/index.php?271. Click on the part number to access the corresponding data sheet. Please contact Pulse for additional information on products not covered in this catalog.
Pulse provides a wide range of antenna solutions for mobile phones, wireless access points, automotive applications, and other custom uses. The catalog lists internal, surface‑mount, ceramic, and helical antennas, describing their frequency bands, gain values, and connector types.
The document includes detailed part numbers, mechanical dimensions, RoHS compliance statements, and mounting kit options. Contact information for additional data sheets or ordering an all‑inclusive catalog is also provided.
| RoHS compliance | Yes |
|---|---|
| Operating temperature | -40 °C to +85 °C |
| Impedance | 50 Ω |
| Standard connector | A‑SMA |
Yes, all Pulse antennas are RoHS compliant.
Pulse antennas operate from –40 °C to +85 °C.
Click on the part number on the Pulse website to access the corresponding data sheet.
Contact Pulse at [email protected] or call 800‑268‑3662.
