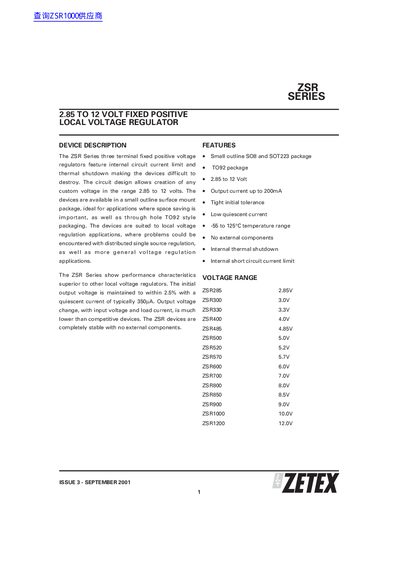

ZSR series three terminal fixed positive voltage regulators feature internal circuit current limit and thermal shutdown making the devices difficult to destroy. The circuit design allows creation of any custom voltage in the range 2.85 to 12 volts. The devices are available in a small outline surface mount package, ideal for applications where space saving is important, as well as through hole TO92 style packaging. The devices are suited to local voltage regulation applications, where problems could be encountered with distributed single source regulation, as well as more general voltage regulation applications. The ZSR Series show performance characteristics superior to other local voltage regulators. The initial output voltage is maintained to within 2.5% with a quiescent current of typically 350µA. Output voltage change, with input voltage and load current, is much lower than competitive devices. The ZSR devices are completely stable with no external components.
The ZSR Series consists of three-terminal fixed positive voltage regulators designed for local voltage regulation applications. These devices feature internal circuit current limiting and thermal shutdown protection, making them robust against damage from external faults or short circuits. They are completely stable with no external components required and offer a wide output voltage range from 2.85V to 12V.
| Output Voltage Range | 2.85 to 12 Volt |
|---|---|
| Output Current | up to 200mA |
| Operating Temperature Range | -55 to 125°C |
| Storage Temperature Range | -65 to 150°C |
| Package Types | SO8, SOT223, TO92 |
The absolute maximum rating for input voltage is 20V.
No, the ZSR devices are completely stable with no external components required.
