Fatal1ty Z77 Professional Series Motherboard is a motherboard launched by ASRock. It supports the third generation and second generation Intel ® Core TM i7 / i5 / i3 processors, supports dual-channel DDR3 memory technology, and is equipped with four DDR3 DIMM slots. It supports DDR3 2800+(overclocking)/2400(overclocking)/2133(overclocking)/1866 (overclocking)/1600/1333/1066 non-ECC, un-buffered memory, and supports up to 32GB of system capacity.

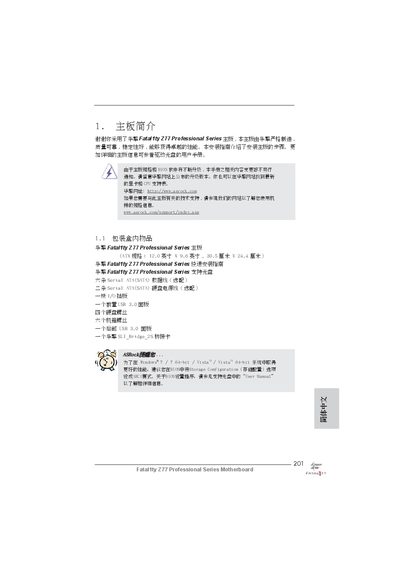

This document is a user guide for the ASRock Fatal1ty Z77 Professional Series motherboard. It details the contents of the package, including the motherboard itself, cables, and installation guides. The manual explains how to install the board in a computer case and configure basic hardware settings.
The guide covers key specifications such as support for Intel Core i7/i5/i3 processors (LGA1155), DDR3 memory up to 32GB, and multiple PCI Express slots. It also describes rear panel I/O interfaces, including HDMI, DisplayPort, USB 3.0, and LAN ports, along with onboard audio and network features. This manual is written in Chinese.
| Form Factor | ATX (12.0 inches x 9.6 inches) |
|---|---|
| Memory Support | Dual Channel DDR3 up to 32GB |
| PCI Express Slots | 2 x PCIe 3.0 x16, 1 x PCIe 2.0 x16 |
| Audio Codec | Realtek ALC898 |
| LAN Controller | Broadcom BCM57781 Gigabit LAN |
The motherboard supports Windows 7, Vista, XP (32-bit and 64-bit).
Yes, it supports Intel Rapid Storage and Smart Response technologies via SATA3.
The maximum shared memory size is 1760MB.
