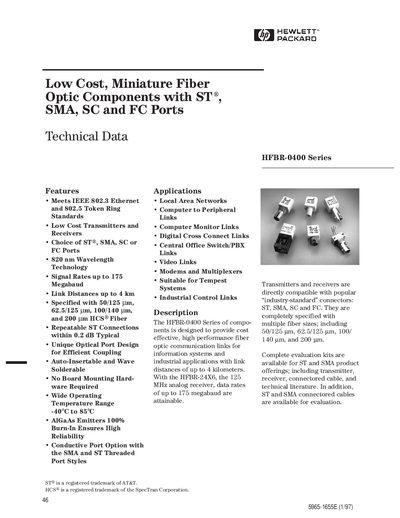

The HFBR-0400 series are low cost transceivers featuring 820 nm wavelength technology and support IEEE 802.3 Ethernet and 802.5 Token Ring standards. They are compatible with ST, SMA, SC or FC connectors and support 50/125µm, 62.5/125µm, 100/140µm and 200µm fiber.
The HFBR-0400 Series from HP provides low‑cost miniature fiber‑optic transmitters and receivers with selectable ST, SMA, SC or FC ports. Designed for Ethernet, Token Ring, and other digital links, the devices support data rates up to 175 Megabaud and link distances up to 4 km.
Evaluation kits include transmitters, receivers, fiber cables and supporting literature, while the mechanical dimensions, packaging, and reliability data are detailed for high‑volume production use.
| Signal Rate | up to 175 Megabaud |
|---|---|
| Link Distance | up to 4 km |
| Wavelength | 820 nm |
| Operating Temperature | -40 °C to 85 °C |
| Fiber Sizes | 50/125 µm, 62.5/125 µm, 100/140 µm, 200 µm HCS |
The series supports signal rates up to 175 Megabaud.
Link distances of up to 4 km are possible.
They operate at an 820 nm wavelength.
They work from –40 °C to 85 °C.
