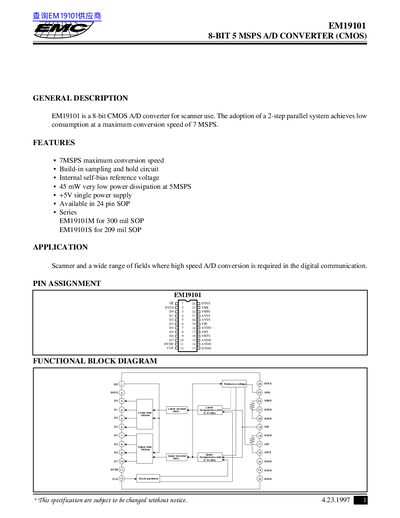

EM19101 is a 8-bit CMOS A/D converter for scanner use. The adoption of a 2-step parallel system achieves low consumption at a maximum conversion speed of 7 MSPS.
The EM19101 is a low-power, 8-bit CMOS A/D converter featuring a maximum conversion speed of 7 MSPS. It includes built-in sampling and hold circuits as well as an internal self-bias reference voltage. The device operates from a single +5V power supply and is available in various SOP packages.
| Resolution | 8-bit |
|---|---|
| Maximum Conversion Speed | 7 MSPS |
| Supply Voltage | +5V single power supply |
| Power Dissipation (Typical) | 45 mW at 5MSPS |
| Operating Temperature | -20 to +65 °C |
| Analog Input Bandwidth | 1 MHz |
The maximum conversion speed is 7 MSPS.
Yes, it has a built-in sampling and hold circuit.
The device requires a +5V single power supply.
