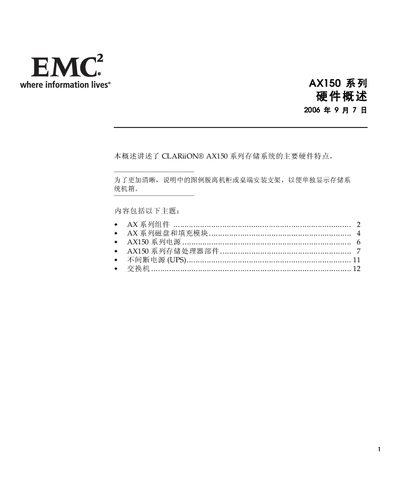

This document describes the main hardware features of the CLARiiON® AX150 series storage system, including AX series components, AX series disks and filler modules, AX150 series power supplies, AX150 series storage processor components, uninterruptible power supply (UPS), and switches.
The EMC AX150 series is a CLARiiON storage system that provides high‑availability hardware features such as redundant RAID, multiple power supplies, and interchangeable drive modules. It supports both SATA and Fibre Channel interfaces and can be configured with up to twelve drive bays.
The document describes the main hardware components, including the CPU, memory, front‑end (FE) and back‑end (BE) modules, power supplies, network ports, and optional UPS units. It also outlines the supported drive types, power specifications, and external connectivity options such as Ethernet and Fibre Channel switches. This manual is written in Chinese.
| Drive form factor | 3.5‑inch (2.5D) SATA |
|---|
