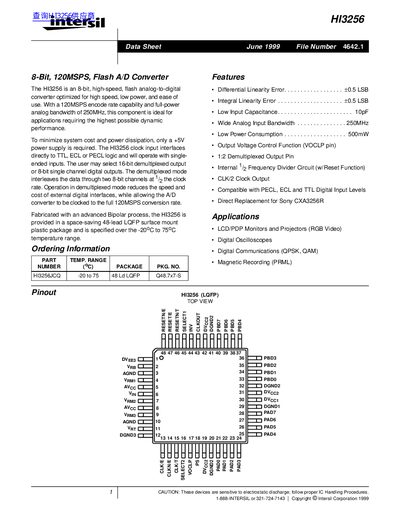

The HI3256 is an 8-bit, high-speed, flash analog-to-digital converter optimized for high speed, low power, and ease of use. With a 120MSPS encode rate capability and full-power analog bandwidth of 250MHz, this component is ideal for applications requiring the highest possible dynamic performance.
The HI3256 is an 8-bit flash analog-to-digital converter designed for high-speed, low-power applications. It supports a 120MSPS conversion rate and 250MHz analog bandwidth. The device operates with a single +5V supply or dual supplies and offers demultiplexed output modes to reduce external interface speed and cost. It is packaged in a 48-lead LQFP and operates from -20°C to 75°C.
| Resolution | 8 Bits |
|---|---|
| Max Conversion Rate (DMUX Mode) | 120 MSPS |
| Analog Input Bandwidth | 250 MHz |
| Power Consumption | 500 mW |
| Package | 48-lead LQFP |
| Operating Temperature | -20°C to 75°C |
120 MSPS.
250 MHz.
A single +5V supply or dual supplies.
-20°C to 75°C.
