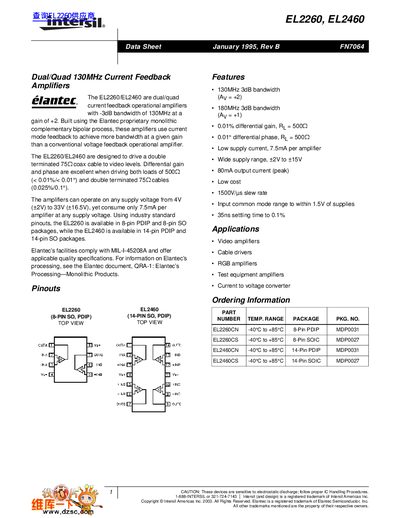

Intersil EL2260/EL2460 Dual/Quad 130MHz Current Feedback Amplifiers Datasheet

EL2260/EL2460 are dual/quad 130MHz current feedback amplifiers with -3dB bandwidth of 130MHz at a gain of +2

Brand: Intersil
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 15
File format: PDF
File size: 343 KB
Published: 08 June, 2012
Updated: 30 September, 2023
MD5 checksum: 467D5D2A998321FFA24B403BE19079F3
PDF: Intersil EL2260/EL2460 Dual/Quad 130MHz Current Feedback Amplifiers Datasheet PDF

About this manual

This document is a technical datasheet for the Intersil EL2260 (dual) and EL2460 (quad) current feedback operational amplifiers. These devices utilize Elantec's proprietary monolithic complementary bipolar process to achieve high performance, including a -3dB bandwidth of 130MHz at a gain of +2.

What's inside

Features
Applications
Pinouts
Ordering Information
Absolute Maximum Ratings
Open-Loop DC Electrical Specifications
Closed-Loop AC Electrical Specifications
Typical Performance Curves

Specifications

-3dB Bandwidth (Ay = +2)	130MHz
-3dB Bandwidth (Ay = +1)	180MHz
Supply Current (Per Amplifier)	7.5mA

Frequently asked questions

What is the supply voltage range for these amplifiers?

The amplifiers can operate on any supply voltage from +2V to +33V.

What are the available package types?

The EL2260 is available in 8-pin PDIP and SO packages, while the EL2460 is available in 14-pin PDIP and SO packages.
