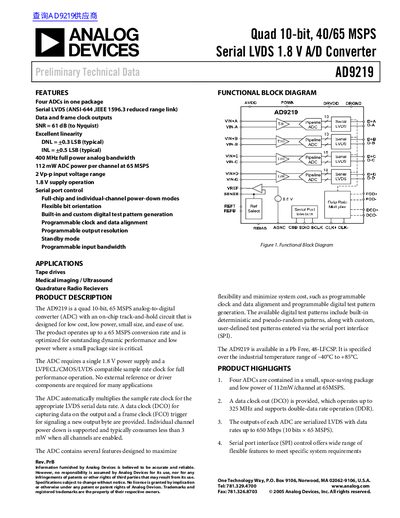

This product is a quad 10-bit, 40/65 MSPS serial LVDS 1.8 V A/D converter
The AD9219 is a quad 10-bit analog-to-digital converter (ADC) with an on-chip track-and-hold circuit designed for low cost, low power, and small size. It operates at conversion rates of 40 or 65 MSPS and features Serial LVDS output compatible with ANSI-644 and IEEE 1596.3 standards.
The device includes four ADCs in a single Pb-free 48-LFCSP package, consuming 112 mW per channel at 65 MSPS. Key features include data and frame clock outputs, programmable bit orientation, built-in digital test pattern generation, and individual channel power-down modes to reduce consumption below 3 mW.
| Resolution | 10 bits (typical) |
|---|---|
| Conversion Rate | 40 or 65 MSPS |
| Supply Voltage | 1.8 V |
| Analog Bandwidth | 400 MHz |
| Signal to Noise Ratio (SNR) | 61 dB |
| Differential Nonlinearity (DNL) | +0.3 LSB |
The ADC consumes 112 mW per channel at 65 MSPS.
Yes, it is available in a Pb Free, 48-LFCSP package.
It is specified over the industrial temperature range of -40°C to +85°C.
