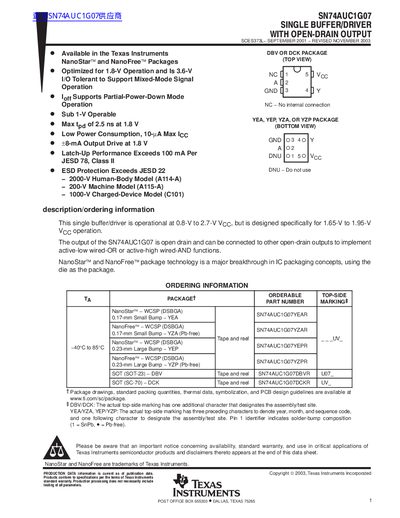

This document describes a single buffer/driver that is optimized for 1.8V operation and supports mixed-mode signal operation. It features low power consumption, fast transfer speed, and high noise immunity.
The SN74AUC1G07 is a single buffer/driver featuring an open-drain output designed specifically for 1.65-V to 1.95-V operation, though it supports a supply voltage range of 0.8 V to 2.7 V. The device includes partial-power-down mode circuitry that disables outputs to prevent damaging current backflow when powered down.
The component is available in several package technologies including NanoStar™ and NanoFree™ (die-size ball grid arrays), as well as SOT-23 and SC-70 packages. It offers low power consumption with a maximum of 10 µA input leakage and provides up to +8-mA output drive at 1.8 V.
| Supply Voltage Range (Voc) | 0.8 V to 2.7 V |
|---|---|
| Operating Temperature Range (Ta) | -40°C to 85°C |
| Output Drive Current at 1.8 V | +8 mA |
| Input Leakage Current (IIL) | Max 45 µA |
| Package Types | NanoStar, NanoFree, SOT-23 (DBV), SC-70 (DCK) |
The device is designed specifically for 1.65-V to 1.95-V operation.
Yes, the open-drain output can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
