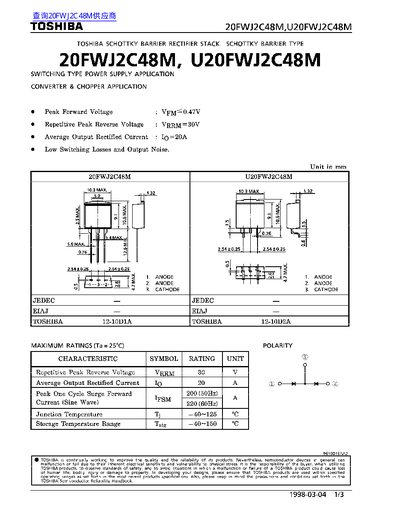

This document provides technical specifications for the Toshiba 20FWJ2C48M and U20FWJ2C48M Schottky Barrier Rectifier Stack. It is designed for switching type power supply applications and converter/chopper circuits.
The datasheet lists maximum ratings such as a repetitive peak reverse voltage of 30V and an average output rectified current of 20A. It also includes electrical characteristics like peak forward voltage, junction capacitance, and thermal resistance, along with typical performance curves for power dissipation and surge current.
| Repetitive Peak Reverse Voltage | 30 V |
|---|---|
| Average Output Rectified Current | 20 A |
| Junction Temperature Range | -40~125 °C |
| Peak Forward Voltage (Typical) | 0.47 V |
The device has a maximum repetitive peak reverse voltage of 30 V.
The average output rectified current rating is 20 A.
The maximum junction temperature is 125 °C.
