2N6387/2N6388 are Motorola bipolar power transistors available in a TO-220AB compact package. These transistors feature high DC current gain, low saturation voltage and built-in base-emitter shunt resistors, making them suitable for general-purpose amplifier and low-speed switching applications.

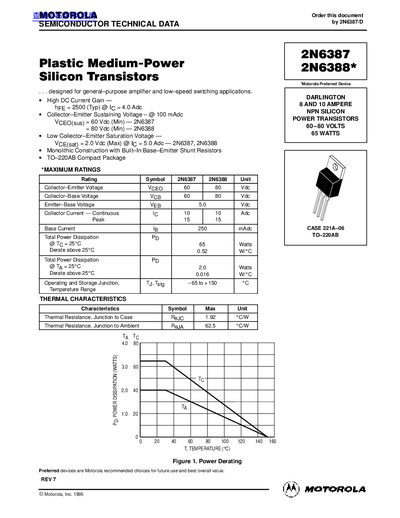

This document provides technical data for the Motorola 2N6387 and 2N6388, which are plastic medium-power NPN silicon Darlington transistors. These devices feature high DC current gain (hFE up to 2500 typical) and are designed for general-purpose amplifier and low-speed switching applications.
| Collector-Emitter Sustaining Voltage (Min) | 60 Vdc / 80 Vdc |
|---|---|
| Collector Current (Continuous) | 10 Adc |
| Total Power Dissipation (@ To = 25°C) | 65 Watts |
| Package Type | TO-220AB |
The typical DC current gain (hFE) is 2500 at Io = 4.0 Adc.
They are designed for general-purpose amplifier and low-speed switching applications.
The maximum continuous collector current is 10 Adc.
