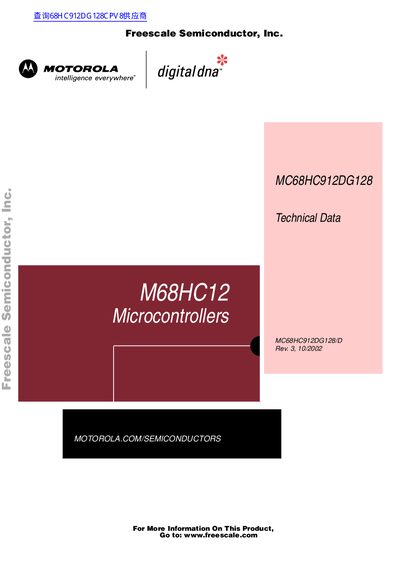

Motorola MC68HC912DG128 Microcontroller Technical Data

About this manual

This document provides comprehensive technical data for the MC68HC912DG128 microcontroller from Motorola. It details the central processing unit, pin assignments, register descriptions, operating modes, and various peripheral functions including I/O ports, timers, serial interfaces, and analog-to-digital converters.

The datasheet also covers memory organization (Flash and EEPROM), reset and interrupt handling, clock functions, and pulse width modulation capabilities. Electrical specifications and ordering information are included to assist in system design and implementation.

What's inside

• General Description
• Central Processing Unit
• Pinout and Signal Descriptions
• Registers
• Operating Modes
• Bus Control and Input/Output
• Flash Memory
• EEPROM Memory
• Resets and Interrupts
• Analog-to-Digital Converter

Frequently asked questions

What is the MC68HC912DG128?

The document identifies this product as a microcontroller belonging to the M68HC12 family.

What is the revision number and date of this document?

This technical data sheet is Revision 3.0, published in October 2002.
