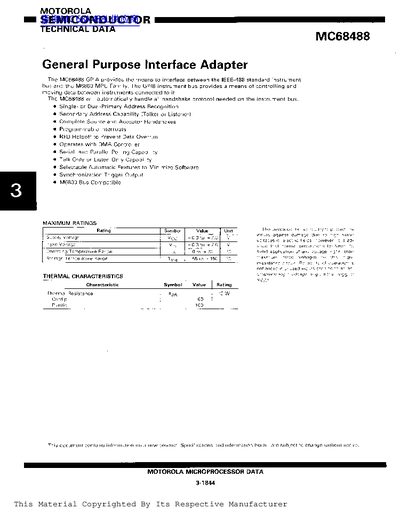

Motorola MC68488 GPIA Technical Data Sheet

About this manual

The document describes the Motorola MC68488 General Purpose Interface Adapter (GPIA), a device designed to interface between the IEEE-488 standard instrument bus and the M6800 MPU Family. It automatically handles handshake protocols required for controlling instruments connected via the GPIB.

What's inside

• General Description
• Maximum Ratings
• Thermal Characteristics
• DC Electrical Characteristics
• Bus Timing
• Output Bus Timing

Specifications

Frequently asked questions

What microprocessor family is the MC68488 compatible with?

The device interfaces between the IEEE-488 standard instrument bus and the M6800 MPU Family.

What is the maximum supply voltage for the MC68488?

The device can operate with a supply voltage ranging from +3.10 V to +7.0 V.

What is the maximum ambient temperature for operation?

The operating temperature range extends up to a maximum of 70°C.

How long does it take for the device to respond to an ATN signal?

The response time to an ATN signal is a maximum of 200 ns.
