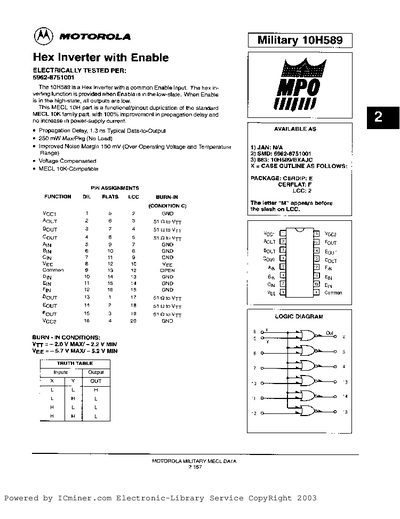

This document is a technical datasheet for the Motorola Military MECL 10H589, which is a Hex Inverter with a common Enable input. It serves as an electrically tested part (PEH) designated by number 5962-8751001.
| Part Number (PEH) | 5962-8751001 |
|---|---|
| Propagation Delay (Typical) | 1.3 ns |
| Max Power Dissipation (No Load) | 250 mW |
| Noise Margin Improvement | 150 mV |
The hex inverting function occurs when Enable is low, and all outputs go low when Enable is high.
The package draws a maximum of 250 mW with no load attached.
