IN74LV623 is an 8-way 3-state non-inverting bus transceiver, compatible with 74HC623A, 74HCT623A series microcircuits, input voltage range is 1.2-3.6V, working temperature range is -40-125℃.

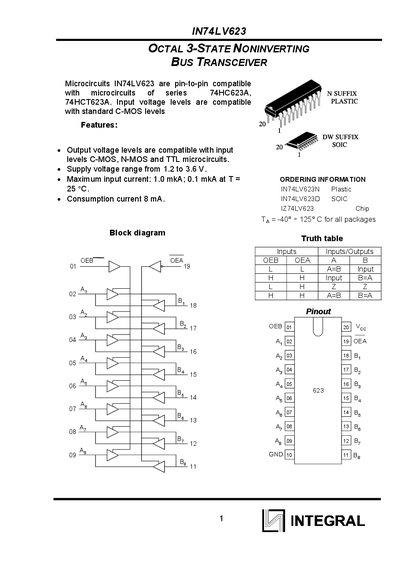

The document describes the IN74LV623, an octal 3-state noninverting bus transceiver manufactured by INTEGRAL. The device is pin-to-pin compatible with microcircuits of series 74HC623A and N SUFFIX 74HCT623A, featuring input voltage levels compatible with standard C-MOS levels.
Key specifications include a supply voltage range from 1.2 to 3.6 V and an operation temperature range from -40°C to +125°C for all packages. The datasheet provides absolute maximum ratings, DC electrical characteristics, AC electrical characteristics (with propagation delay times), and timing diagrams.
| Supply voltage range | 1.2 to 3.6 V |
|---|---|
| Operation temperature | -40° + 125° C |
| Maximum input current | 1.0 mkA |
| Consumption current | 8 mA |
The device operates with a supply voltage ranging from 1.2 to 3.6 V.
The unit operates from -40 to 125 °C for all package types.
