The IW4069UB 1 HEX INVERTER is a high-voltage silicon-gate CMOS device that consists of six inverter circuits and is intended for all general-purpose inverter applications where the medium-power TTL-drive and logic-level-conversion capabilities of circuits such as the IW4049UB Hex Inverter/Buffers are not required.
The document describes the Integral IW4069UB types, which consist of six inverter circuits intended for general-purpose inverter applications. These devices feature medium-power TTL-drive and logic-level-conversion capabilities suitable for operating voltages ranging from 3.0 to 18 V.

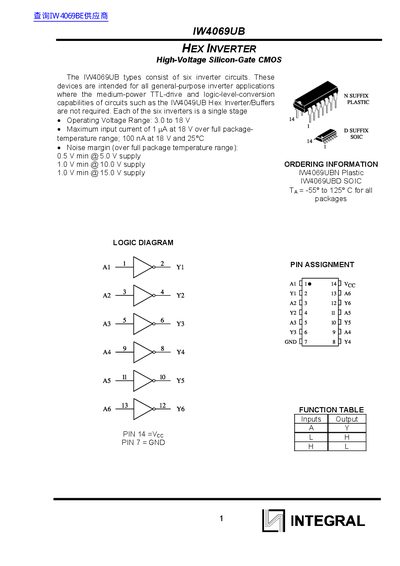

The datasheet provides detailed specifications including maximum ratings, recommended operating conditions, DC electrical characteristics, and AC electrical characteristics such as propagation delay and output transition time. It also includes a pin assignment diagram and a function table for the logic operations.
| Maximum Input Current | +1 A at 18 V |
|---|---|
| Operating Temperature Range | -55 to +125 °C |
| Number of Inverters | Six |
The minimum noise margin is 0.5 V when supplied with 5.0 V.
The device is available in Plastic DIP and SOIC packages.
