This is a PDF document which mainly introduces the performance parameters, usage methods and other information of the 40-501-09/01 model of the pneumatic electric valve of the German H company.

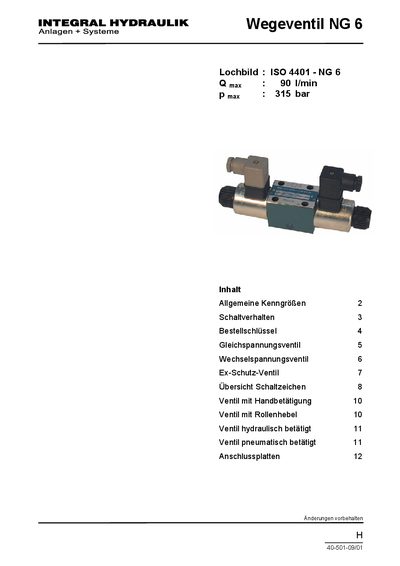

The document provides an overview of the Integral NG 6 hydraulic valve, including its general characteristics, switching behavior, and available actuation methods such as electric, hydraulic, pneumatic, and manual hand lever. It also lists ordering keys and connection plate details.
Detailed technical specifications are given, covering pressure limits, temperature range, electrical ratings, protection class, power consumption, switching times, and mechanical dimensions. Ordering numbers for different voltage and explosion‑protected versions are included, along with reference diagrams for symbols and connection interfaces. This manual is written in German.
| Lochbild | ISO 4401 - NG 6 |
|---|---|
| Maximum pressure | 315 bar |
| Operating temperature range | -25 … +50 °C |
| IP protection class | IP 65 |
| Power consumption (electric actuation) | 33 WV |
| Maximum switching frequency | 18 000 cycles |
| Weight (single‑side actuation) | 1.5 kg |
| Weight (dual‑side actuation) | 1.9 kg |
The valve can be operated up to 315 bar.
It is rated IP 65.
The valve operates between –25 °C and +50 °C.
