Intersil EL5164, EL5165, EL5364 600MHz Current Feedback Amplifiers with Enable is a high bandwidth integrated circuit with 600MHz. It is suitable for high definition video monitoring applications.

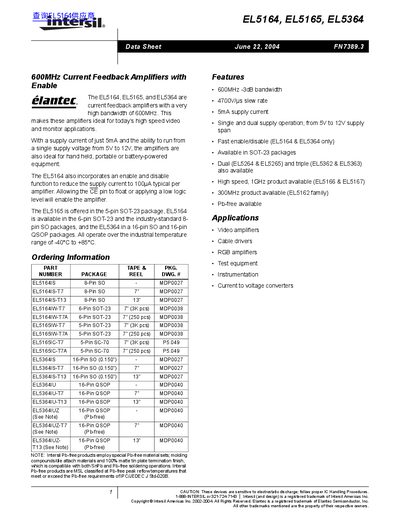

This document is a technical datasheet for the EL5164, EL5165, and EL5364 family of high-speed current feedback amplifiers. These devices offer a -3dB bandwidth of 600MHz and are designed for applications such as video amplification, cable drivers, and RGB signal processing.
| -3dB Bandwidth | 600 MHz |
|---|---|
| Slew Rate | 4700 V/us |
| Supply Current (Enabled) | 5 mA |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage Span | 5V to 12V |
The EL5164 is available in 6-pin and 8-pin SOT-23/SO, the EL5165 in 5-pin SOT-23/SC-70, and the EL5364 in 16-pin SO/QSOP.
Yes, the EL5164 and EL5364 incorporate an enable and disable function to reduce supply current.
Yes, Pb-free products are available with special material sets compatible with SnPb and Pb-free soldering.
