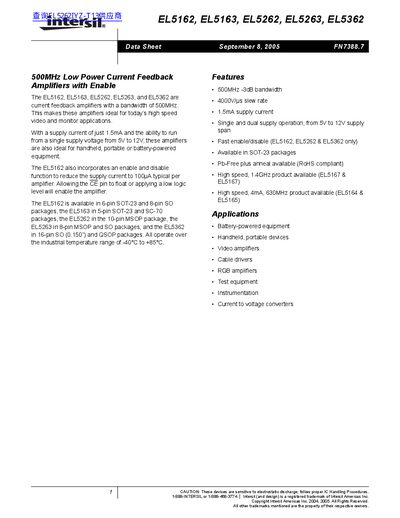

EL5162, EL5163, EL5262, EL5263, EL5362 500MHz Low Power Current Feedback Amplifiers
The document describes the EL5162, EL5163, EL5262, EL5263, and EL5362 family of current feedback amplifiers. These devices offer a -3dB bandwidth of 500MHz and are designed for high-speed video and monitor applications. They feature low supply current (1.5mA) and support single or dual supply operation from 5V to 12V.
| -3dB Bandwidth | 500 MHz (EL5162/EL5163) / 233 MHz (EL5262/EL5263/EL5362) |
|---|---|
| Supply Voltage Range | 5V to 12V |
| Operating Temperature | -40°C to +85°C |
| Slew Rate (EL5262/EL5263/EL5362) | Up to 4000 V/us |
The EL5162 and EL5163 have a -3dB bandwidth of 500 MHz.
The EL5162, EL5262, and EL5362 incorporate an enable and disable function.
